     14.11.2011 r.

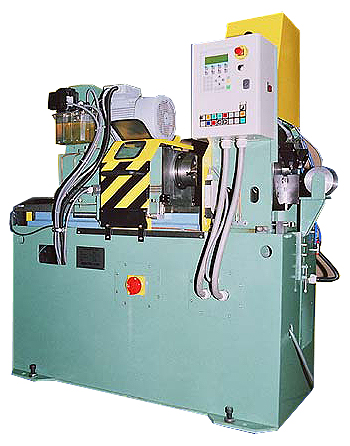

Chamfering F400

Chamfering F400 is a modern structure designed to shape the ends of pipes with diameters ranging from 25 to 108 mm, with pipe wall thicknesses up to 18 mm.

Chamfering F400 is produced in the right version, the symbol and the left F400P - F400L, which makes it ideal for automated machining lines long pipes and maintenance of machine tools without going to the other side of the machining line.

Types of machining operations performed by chamfering:

• Processing of the pipe hole (for up to 50 mm),
• Face processing pipe
• Chamfering the outer edges.

Chamfering consists of the following teams:

• Bed machine (Flatbed welded system),
• Boring slide,
• Longitudinal carriage chamfering drive ,
• Team fixing material (pipe machined on the machine).

Working spindle bottom bracket of chamfering put in a rotary motion by means of an electric motor with variable speed controlled by inverter. Used in the control system SIMATIC S7 cooperating with SIEMENS OP7 panel to control the cycle and the reference and visualization of machining cycle parameters (feed speed, travel speed and travel path). Longitudinal drive is implemented by means of toothed belt drive assembly and the running gear screws. Team fastening material are two self-centering lathe handles attached to the bracket resting on the bed. Lathe Chuck axis coincides with the axis of bottom bracket spindles wytaczarskiego. Clenching the jaw in the handles is in an automatic way by using pneumatic gear motors and signaling system to confirm the settings of the workpiece.

PARRAMETRY SPECIFICATIONS :

The largest diameter of the mounting bracket	fi = 120 mm
Tool Spindle Taper ISO	ISO 50
Spindle speed range	400 ÷ 1500 obr./min.
Maximum power	10 kW
Longitudinal slide of chamfering	400 mm
Chamfering ange of feed slide	0 ÷ 500 mm/min.
Chamfering rapid traverse slide	6000 mm/min.
Chamfering slide positioning repeatability	0,02 mm
The smallest diameter of the tube workpiece	fi = 25mm
The largest pipe diameter machined	fi = 108 mm
The largest wall thickness of 18 mm machined	18 mm
Dimensions [length x W x H]	1470 x 660 x 1635 mm
The total weight of the machine ca	ca 3,5 t
