e-mail: biuro@elektro-ster.raciborz.plCNC DRILL 1-40 MPN
MPN 1-40 CNC DrillVertical drilling machine CNC 1-40 MPN - is designed to automatically drill holes with diameters up to 40 mm and a depth of 300 mm with special emphasis den sieve, sieve, baffles, and other items requiring a large number of holes.

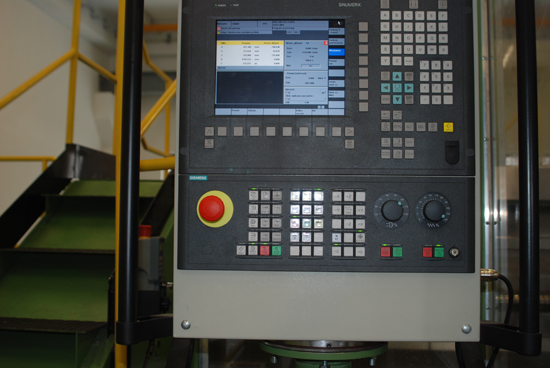

Vertical drilling machine tool is equipped with the latest type CNC SIEMENS SINUMERIK 840sl. Applied directly HEIDENHAIN measuring systems allow to obtain high accuracy positioning systems working machine.
The drill was used drives backlash-free transmission systems:
- Gears rolling screws (Y and Z axis);
- Strips gears and planetary gears with backlash cancellation system (X axis)
Drill has a spindle with built-in auto break-away tool. The cooling system provides cooling, both through the tool, as well as the spout. The machine is equipped with a chip conveyor and coolant filtration station
SPECIFICATIONS
|
Workspace |
|
|
Sliding doors (X-axis) |
6500 mm |
|
Headstock stroke (Y axis) |
4750 mm |
|
Tailstock spindle (Z axis) |
350 mm |
|
Spindle |
|
|
Taper in spindle ISO |
ISO 50 |
|
Spindle speed range 1 |
1 – 3000 obr/min. |
|
Maximum torque on the spindle |
305 Nm |
|
Main drive motor power |
16 kW |
|
Maximum drilling diameter |
40 mm |
|
Feeds |
|
|
Range of feeds in the X, Y, 0 |
0 – 4500 mm/min |
|
Range of feeds in the Z-axis 0 |
0 – 3000 mm/min |
|
The maximum drilling depth of up to |
do 300 mm |
|
Other |
|
|
CNC SINUMERIK 840D sl, or other by. requirements |
Sinumerik 840D sl, lub inne wg. wymagań |
|
Power supply |
3 x 400V |
|
Total power installed |
80 kVA |
|
Machine Weight |
25000 kg |
|
Machine dimensions |
12500 x 8000 x 3500 mm |

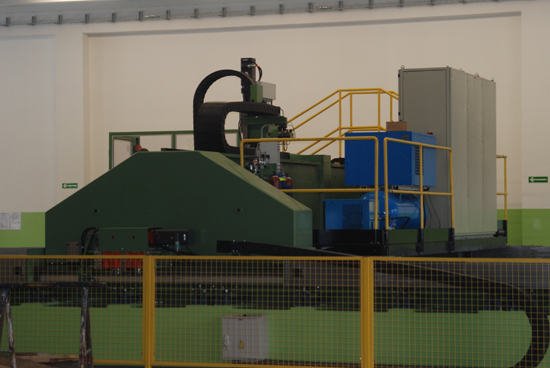

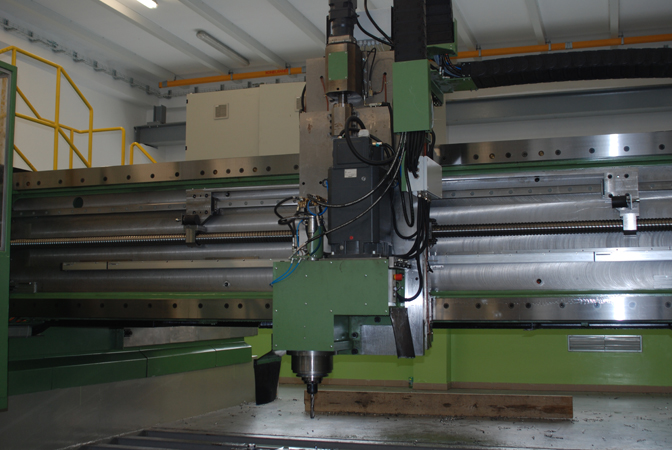

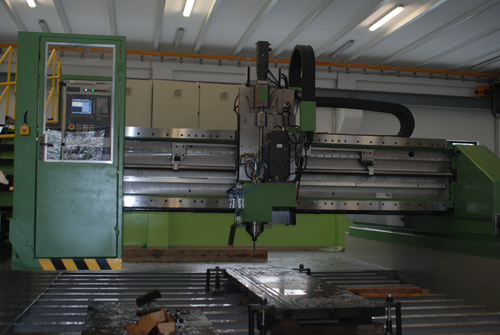

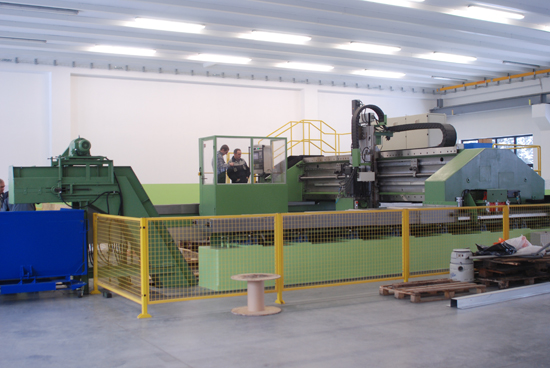

Gallery
