e-mail: biuro@elektro-ster.raciborz.plLATHE CNC VERTICAL TK 1600

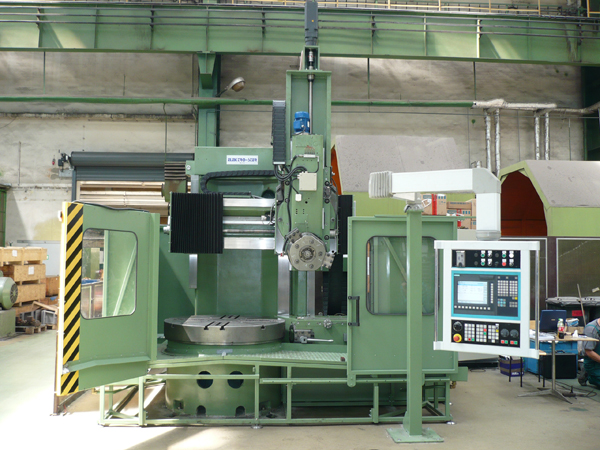

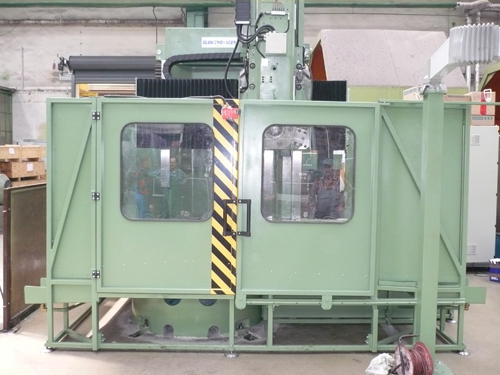

Onestand CNC Vertical lathe CNC TK 1600 is designed to carry bulky items rolling operation according to by a given technology program. TK 1600 CNC machine tool has two slides: vertical anderlying components and elements of the kinematic chain in combination with wide ranges of rotational speed dial table allows high-value feed processing while maintaining a high reproducibility of dimensional and quality machined parts. horizontal (lateral).Much of the main drive motor power, high stiffness and strength of the und

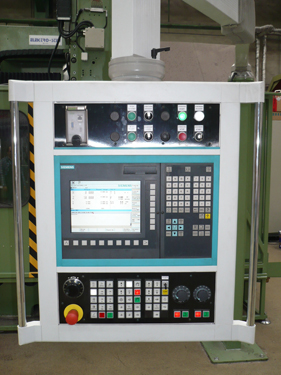

The use of CNC system allows an automatic and high-performance machining of details in accordance with the technological program and perform complex machining operations
GENERAL DESCRIPTION OF MACHINE TOOLS CNC TK 1600

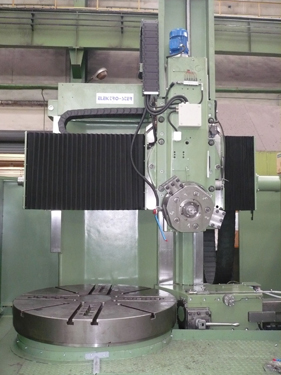

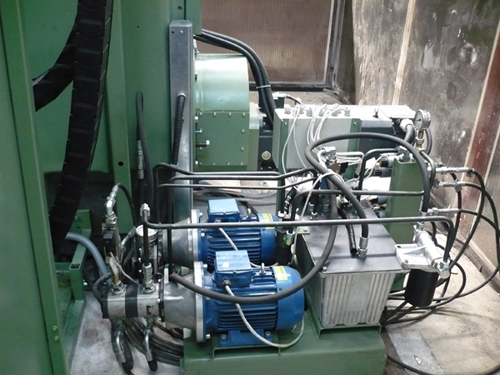

The basic elements of machine tools:
-
Machine tool bed of the table,
-
Stand from a movable beam apron,
-
The vertical slide lathe with a revolving head,
-
Slide horizontal (lateral).
Machine tool bed provides the basis for the table and stand. The stand is mechanically fastened to the vertical plane. On the rack bar is movable apron. After the horizontal beam guides moves right vertical slide (Z-axis "X"), and slide the vertical slider rails (axis "Z"). On the vertical rack rails also moves slide horizontal (lateral) (axis "W") with pull-out slide (axis "U")
The basic elements of machine tools such as bed, stand, bar apron, a table is made of cast iron. This prevents the high stability of the machine tool geometric parameters and good vibration damping in comparison with the welded constructions.
All guides for movement along the axis "X", "Z", "W" and "U" are guides and are plain on one side lined with synthetic material, "TURCITTE". This material has a low and stable coefficient of friction, which prevents the phenomenon of „stick - slip” and does not require a large consumption of oil for lubrication.
The machine may have a numerically controlled axes as follows:
-
Axis "X" - bracket displacement on the beam (standard);
-
Axis "Z" - vertical displacement of the slider (standard);
-
Axis "W" - shift slide horizontal (lateral);
-
Os "U" - shift slide the slider to the horizontal (lateral).
BASIC TECHNICAL CHARACTERISTICS TK 1600 CNC MACHINE TOOLS
|
LP |
|
|
TK1600 CNC |
|
1. |
Table diameter (maximum machining diameter) |
mm |
1400 (1600) |
|
2. |
The number of horizontal slides |
|
1 |
|
3. |
The number of vertical slides |
|
1 |
|
4. |
Pass of vertical slider carriage |
mm |
700 |
|
5. |
Cross-section of vertical slider carriage |
mm |
220 x 220 |
|
6. |
Number of positions in turret |
|
5 |
|
7. |
Speed of vertical slide motion actuators and slider (infinitely adjustable) |
mm/min |
0,2 - 5000 |
|
8. |
Working vertical slide and the slider (infinitely adjustable) |
mm/min |
0,1÷2000 |
|
9. |
Number knives mounted simultaneously in the vice side knife carriage |
|
4 |
|
10. |
The biggest slide vertical travel horizontal (lateral) |
mm |
1000 |
|
11. |
The biggest horizontal shift of the horizontal bracket (side) |
mm |
930 |
|
12. |
mm |
600 |
|
|
13. |
mm/min |
400 |
|
|
14. |
Power of main drive |
kW |
30 |
|
15 |
I - range 4 - 125 r / min, kg 6300 (and range) II - range of 160-200 r / min kg 2400 (second range) Maximum weight of workpiece on the table WARNING! The maximum rotation speed of the table depends on the weight of the workpiece. Workpiece weight gain reduces the maximum speed of the table. |
kg |
6300 (I zakres) 2400 (II zakres) |
|
16 |
16.Wymiary dimensions of the machine tool cooling system and control cabinet: - Length 3400 mm - Width 4100 mm - Height 5300 mm |
mm |
3400 4100 5300 |
|
17. |
Machine weight |
kg |
20000 |
